How to Diagnose a No-Start Electrical Problem in a Diesel Engine

No-start diesel? No problem. From dead batteries to ECM lockouts, we break down every step to diagnose electrical issues fast. Whether it’s a silent crank or fuel delivery failure, this guide helps you pinpoint the cause and get rolling again—fast.

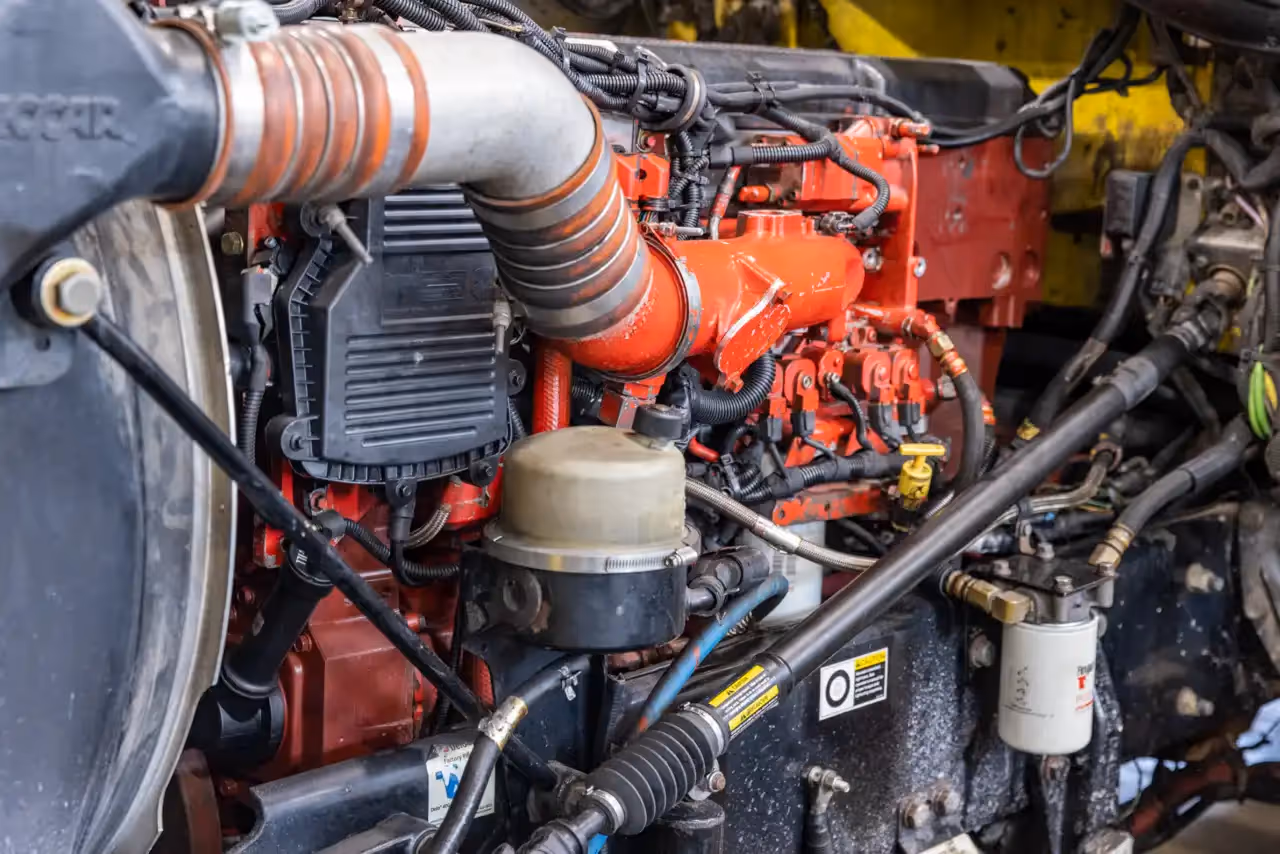

No start diagnostic on a diesel engine showing intake, fuel lines, and electrical harnesses under inspection.

There’s nothing more frustrating than turning the key and getting absolutely nothing in response. No crank, no click, no life. A no-start electrical problem in a diesel engine can grind your day—and your load—to a screeching halt. But diagnosing the issue doesn’t have to be a game of guesswork.

Whether you’re in a busy lot in Phoenix or a dusty backroad outside Benson, AZ, getting your diesel rig back on the road starts with methodical troubleshooting. Let’s break it all down, from starter circuits to battery voltage—and everything in between.

Start with the Obvious: The Battery

Before diving into fuses and sensors, look at your battery—the lifeblood of your truck’s electrical system.

Check voltage: Grab a multimeter and measure across the battery terminals. A healthy battery should show 12.6 volts or higher. Anything below 12 volts is suspect.

Inspect terminals: Corroded or loose terminals are notorious for causing no-start issues. Clean them thoroughly with a terminal brush and make sure they’re tight.

Load test: Your battery's voltage might look fine, but that doesn’t mean it has the juice to crank the engine. Use a load tester to check its actual performance under strain.

Test the Starter Circuit

Your starter motor cranks the engine over and gets everything moving. If it’s not engaging, you have a wiring problem, a faulty solenoid, or a dead starter.

Listen closely: Hear a loud click when you turn the key? That’s the starter solenoid trying—and failing—to engage.

Tap test: Give the starter body a few light taps with a hammer while someone cranks the key. If it fires up, you’ve got a failing starter.

Check voltage at the starter: Put the multimeter on the starter terminals while cranking. You should see the battery voltage reaching the unit.

If the starter’s getting juice but not spinning, it’s time to replace it.

Examine the Ignition Switch and Relay

When you turn the key, you do more than just engage the starter. You're sending power to an entire ignition circuit, from the starter relay to the fuel system.

Check relay clicks: Pull and test the relay using a jumper wire or swap it with a known good one.

Probe the switch: Remove the lower steering column cover and use a test light to verify output voltage at each key position.

A dead ignition switch is sneakier than it sounds—it can mimic a dozen different failure modes, so don’t skip it.

Fuel System Interlocks

Diesel engines don’t use spark but depend on precise timing and fuel delivery. If your fuel injectors aren’t receiving power, the engine won’t even try to start.

Fuel pump check: Many systems have an electric lift pump. Can you hear it buzz when you turn the key?

Injector signal: Use a noid light or multimeter to confirm the injectors receive a pulse.

Also, confirm that the fuel shutoff solenoid isn’t stuck or damaged. Without it opening, no fuel will reach the combustion chamber.

Glow Plug System

If it’s cold out and your glow plugs aren’t working, your engine won’t start. Period.

Check the controller: Use a scan tool or DVOM to verify voltage at the glow plug relay.

Test each plug: Remove and bench-test each glow plug, or test resistance across each terminal. High resistance = bad plug.

In Arizona, colder mornings aren’t too common, but a weak glow system can still trip you up during winter hauls in higher elevations.

Scan for Fault Codes

Modern diesels are packed with electronic control modules (ECMs), which store trouble codes when things go wrong.

Use a scan tool: Even if the Check Engine Light isn’t on, you may find helpful fault codes stored in the system.

Check live data: Monitoring crankshaft RPM while cranking can confirm whether the crankshaft position sensor is doing its job. No RPM? No start.

The Alternator’s Role

Sure, the alternator doesn’t start your engine—but if it’s failed and you’ve been driving on battery alone, you might be out of juice.

Test charge voltage: With the engine running (if you get it started), check for 13.5–14.5 volts across the battery. Anything lower means the alternator isn’t pulling its weight.

Even a perfect starter won’t help if your battery is too drained to feed it.

ECM and Anti-Theft Locks

Diesel engines rely on engine control modules (ECMs) for fuel delivery and ignition timing. If the ECM isn’t powering up—or if there’s an anti-theft lockout—you’re dead in the water.

Check ECM fuses: Don’t overlook these in the panel.

Watch for security lights: Flashing immobilizer lights on the dash are a red flag.

If the ECM isn’t communicating with your diagnostic tool, you could be dealing with a wiring fault or a failed unit.

What If It Still Won’t Start?

If you’ve gone through all the above and still can’t get a crank or even a click, you may have:

  • A faulty neutral safety switch (especially on automatic transmissions)

  • A broken ground wire (look for frayed or corroded cables to the chassis)

  • Internal wiring harness damage from rodents or wear

At that point, you’re looking at either a deep dive into the harness or, for a quicker, safer, and more effective way, seek out professional heavy-duty diagnostics service.

Final Thoughts

Diagnosing a no-start electrical problem in a diesel engine is all about breaking things down step-by-step. Don’t get tunnel vision. If your battery’s good and the starter’s silent, look upstream. If it cranks but won’t fire, think fuel and sensors. Each test brings you closer to the answer—and back on the road.
